DIN-DMX-5A CV DMX Decoder(DIN rail/Screw dual-use, Digital Display) DIN-DMX-5A manufacturer from China Zhuhai Ltech Techonlogy Co.Ltd.

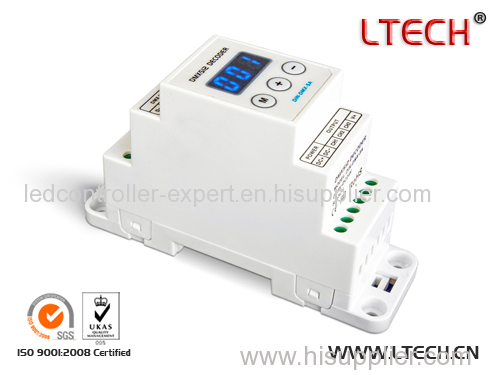

DIN-DMX-5A CV DMX Decoder(DIN rail/Screw dual-use, Digital Display)

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DIN-DMX-5A

Production Capacity: 5000 pecs per month

Delivery Date: within5 working days after ...

Means of Transport: Air

Packing: carton packing

DMX-PWM DMX Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM

DMX-PWM DMX Decoder

DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.

outstanding performance.
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lightning stroke and ESD static electricity.

Product Parameter

DIN-DMX-5A CV DMX Decoder(DIN rail/Screw dual-use, Digital Display)
Input signal	DMX512
Input voltage	DC5VDC24V
Max load current	5A ×3CHMax 15A
Max output power	75W/180W/360W/(5V/12V/24V)
Dimming range	0~100%
Working temperature	-30℃55℃
Dimension	L112×W35×H67(mm)
Package Size	L114×W37×H70(mm)
Weight (G.W)	120g
