top sale 0/1-10V CV signal LED digital Dimming Driver 10A/CHx1 DC12V-24V signal converter LT-701-10A manufacturer from China Zhuhai Ltech Techonlogy Co.Ltd.

top sale 0/1-10V CV signal LED digital Dimming Driver 10A/CHx1 DC12V-24V signal converter

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LT-701-10A

Production Capacity: 5000 pecs per month

Delivery Date: within5 working days after ...

Max load current: 10A/CH×1

Input signal: 0/1-10V OR PUSH-DIM

Means of Transport: Ocean,Land,Air

Packing: carton packing

Input voltage: DC12V~DC24V

Max output power: 120W(12V)/240W(24V)

1.CE,FCC,RoHS, SGS-ISO:9001
2.Excellent quality LED RGB controller
dimming led driver 0/1-10V

Detailed Product Description

1.CE,FCC,RoHS, SGS-ISO:9001
2.Excellent quality LED RGB controller
dimming led driver 0/1-10V

0/1-10V Dimming Driver

Along with the rise of LED illumination, LED lamps are widely used in hotel, business center, household decoration etc. there are more and more chances to use LED and fluorescent lights at the same project, if LED lamps and fluorescent lights can be controlled together by a traditional fluorescent dimming system, it will make everything more convenient, but the dimming principles of LED and traditional fluorescent lights are different, LED lights can not be dimmed by the fluorescent dimming controller directly.

As a fact of that, our company developed a new 0-10V to PWM dimming driver which has solved the compatible problem of fluorescent dimming system. and LED illumination, LED lamps can be controlled by many traditional intelligent dimming system.

NOTE:The CV Dimming Drive and CC Dimming Drive can be connected together on the same dimming

system, which is convenient for controlling different LED lamps with different voltage and power.

Product parameter

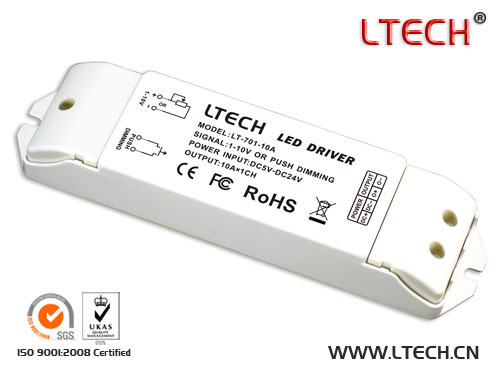

LT-701-10A CV 1-10Dimming Driver
Input voltage	DC12V~DC24V
Max load current	10A/CH×1
Max output power	120W(12V)/240W(24V)
Input signal	0/1-10V OR PUSH-DIM
Output signal	PWM LED dimming signal
working temperature	-30°C~55°C
Dimension	L175×W44×H30(mm)
Package Size	L178×W48×H33(mm)
Weight (G.W)	110g
